How To Draw 3D Shape With Bond Angles / Vsepr Molecular Shapes Student Model Kits Chemdemos - Movies in 3d pop out at us.. Some elements in group 15 of the periodic table form compounds of the type ax 5; A quick explanation of the molecular geometry of nh3 including a description of the nh3 bond angles.the nh3 molecular geometry (molecular shape) is trigonal. The bond angles for the molecules having a tetrahedral geometry is 109°, but as the geometry of h 2 o molecule is distorted due to the presence of the lone pairs of electrons, the bond angle decreases from 109° to 104.5° h2o shape. The molecular shape of the h 2 o molecule is bent. A bond angle is the angle between any two bonds that include a common atom, usually measured in degrees.
For example, now hold your 3d model so it looks like the picture below. The molecular shape of the h 2 o molecule is bent. Understanding the terminology and geometries of hybridized orbitals (part of the valence bond theory). As all the four atoms are arranged in symmetry around the phosphorus atom, the shape is not distorted and is arranged in a tetrahedral shape. This pair exerts repulsive forces on the bonding pairs of electrons.
Hybridization Of Clf3 Hybridization Of Cl In Chlorine Trifluoride from cdn1.byjus.com To visualize this, think about movies. The other two atoms are on opposite ends of the molecule. This mismatch between what you draw and what the molecule actually looks like can lead to problems if you aren't careful. Becl 2 has an easy structure and molecular geometry. In these examples the electron pair geometry is the same as the molecular geometry. Gaseous beryllium hydride beh 2 (q = h, x = be). Repulsion is greatest between the lone pair and the bonding pairs of electrons so the angle between these will be greater than 109.5° which means the remaining bonding pairs of electrons will be forced closer to each other resulting in bond angles less than 109.5° and a trigonal pyramidal shape. Sp = linear = 180 degsp2= trigonal planar = 120 deg.
Methane isn't flat with 90° bond angles.
Be is a group 2 element with two outer electrons and so can form two single. Each bond uses two valence electrons. Magnitude of a bond angle or dihedral angle. Draw the lewis electron structure of the molecule or polyatomic ion. There are three single bonds and one lone pair of electrons in nh3 molecule. This pair exerts repulsive forces on the bonding pairs of electrons. A multiple bond (double bond or triple bond) counts as one electron group. The bond dipoles are colored magenta and the resulting molecular dipole is colored blue. How to draw von scott robertson bei thalia entdecken Second, we can depict the same molecule in 2d where different atoms have bold or dashed wedged bonds. How to draw 3d drawings. To draw a 3d shape, start by drawing a square in the center of a piece of paper. A bond angle is the angle between any two bonds that include a common atom, usually measured in degrees.
It has a molecular geometry of trigonal pyramidal which also looks like a distorted tetrahedral structure. In these examples the electron pair geometry is the same as the molecular geometry. There are three single bonds and one lone pair of electrons in nh3 molecule. To predict the shape of the molecules, first draw out the lewis structure of the molecule. Molecular geometry around 2nd central atom:

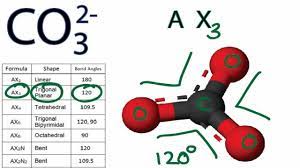

Co3 2 Molecular Geometry Shape And Bond Angles Youtube from i.ytimg.com Draw the lewis electron structure of the molecule or polyatomic ion. Räume professionell visualisieren hochwertige 3d grundrisse in 24h You will probably be familiar with working out the shapes of simple compounds using the electron pair repulsion theory. Based on vsepr theory (valence shell elect. On the lewis diagram, identify the central atom. Draw a single bond from each terminal atom to the central atom. Second, we can depict the same molecule in 2d where different atoms have bold or dashed wedged bonds. To visualize this, think about movies.
Each bond uses two valence electrons.
The drawing of basic shapes and forms will enable the drawing of more complex shapes with confidence. A quick explanation of the molecular geometry of nh3 including a description of the nh3 bond angles.the nh3 molecular geometry (molecular shape) is trigonal. Notice that the way the methane is drawn bears no resemblance to the actual shape of the molecule. The bottom left of the second square should intersect the top right of the first square, creating a smaller square between the two. A bond angle is the angle between any two bonds that include a common atom, usually measured in degrees. On the lewis diagram, identify the central atom. The precise bond angle is 104.5.looking at the h2o. Bond angles also contribute to the shape of a molecule. In molecules with more than one bond, both shape and bond polarity determine whether or not the molecule is polar. Second, we can depict the same molecule in 2d where different atoms have bold or dashed wedged bonds. Gaseous beryllium hydride beh 2 (q = h, x = be). Now, the cl, c, cl atoms form a plane, which will be the plane of the paper. Molecular geometry around 2nd central atom:
Repulsion is greatest between the lone pair and the bonding pairs of electrons so the angle between these will be greater than 109.5° which means the remaining bonding pairs of electrons will be forced closer to each other resulting in bond angles less than 109.5° and a trigonal pyramidal shape. The molecular shape of the h 2 o molecule is bent. The bond dipoles are colored magenta and the resulting molecular dipole is colored blue. How to draw 3d drawings. In these examples the electron pair geometry is the same as the molecular geometry.
What Are The Shapes And Bond Angles Of Sp Sp2 Sp3 Sp3d Sp3d2 Hybridised Orbitals Respectively Quora from qph.fs.quoracdn.net To predict the shape of the molecules, first draw out the lewis structure of the molecule. On the lewis diagram, identify the central atom. Eg pcl 3 its shape will be pyramidal but although you should be able to work this out and predict that the bond angle is a bit less than 109 o 28', you cannot say exactly what the bond angle is. And as it has a tetrahedral shape, it has bond angles of 109.8, although it might differ a bit due to the double bond in the molecule. Second, we can depict the same molecule in 2d where different atoms have bold or dashed wedged bonds. 3 a = central atom, x = surrounding atoms, e = lone pairs 4 molecules with this shape are nonpolar when all of the atoms connected to the central atom are the same. An answer of less than 109 o 28' is not very good because that could include something ridiculous like 36 o , but saying between 106 and 108 o. For example, consider the simple molecule with the molecular formula ch 2 cl 2.
A quick explanation of the molecular geometry of no2 including a description of the no2 bond angles.
And as it has a tetrahedral shape, it has bond angles of 109.8, although it might differ a bit due to the double bond in the molecule. These bonded pairs of electrons take the positions as far as possible to avoid the repulsive forces, resulting in 180. The shape is distorted because of the lone pairs of electrons. Methane isn't flat with 90° bond angles. 2 a multiple bond (double bond or triple bond) counts as one bond in the vsepr model. In molecules with more than one bond, both shape and bond polarity determine whether or not the molecule is polar. Before, we see movies that are just on the screen and that's good. Eg pcl 3 its shape will be pyramidal but although you should be able to work this out and predict that the bond angle is a bit less than 109 o 28', you cannot say exactly what the bond angle is. The bottom left of the second square should intersect the top right of the first square, creating a smaller square between the two. How to draw 3d drawings. In the geometry, three atoms are in the same plane with bond angles of 120°; In the linear configuration (bond angle 180º) the bond dipoles cancel, and the molecular dipole is zero. Two groups of electrons around the central atom.
